Payment:	Bank note, Coin,                Debit & Credit Card,	Payment system protocol:	MDB/Dex
Telemetry:	Own brand or Compatible with Nayax Telemetry System	Cooling:	Modularized Refrigeration System
Locations:	Indoors or Outdoors under shelter	Material:	Stainless Steel/Temperated Glass
Color:	Black, White or custom color	Compressor:	Donper by Default, Danfoss or Embraco is optional
Sensor	Drop Sensor

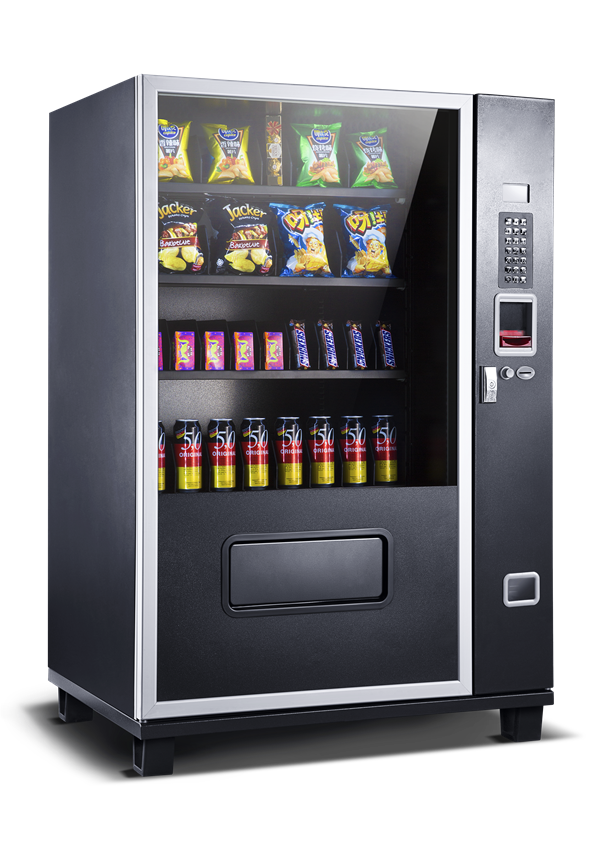

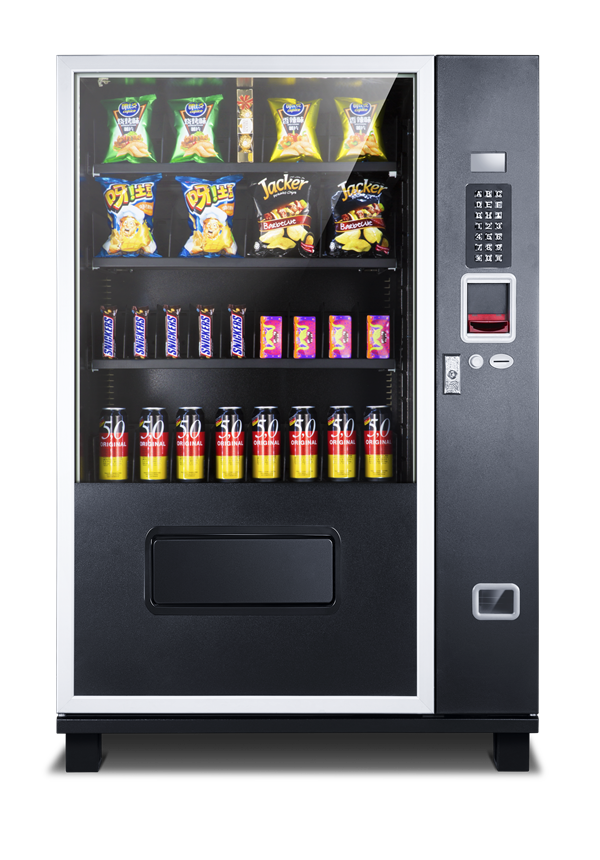

Kimma Snacks and Beverage Vending Machine

KVM-G432(Comprehensive series)

Specification

Item	Parameter
Model	KVM-G432 (Snacks & Beverage Vending Machine)
Outside Dimension	1535*1034*750(mm) (H*W*D)
Weight	180kg
Body Color	OEM (according to customer request)
Body Material	Rigid steel body with overall foam
Showing Window	1. Antiriot Tempered double-pane glass  2. LED lighting system
Payment system protocol	MDB
Payment System	Standard:  Bill, Coin and return change
Drop sensor	Ensure vending success
Merchandise	Snacks & food   Beverages & dairy   Grocery
Delivery	Spiral
Max selections of tray	8
Max trays	4
Max selections of showcase	32
Storage Capacity	48pcs Beverage &100pcs Snacks
Cooling Function	Compressor refrigeration
Internal temperature	Top 12°C~18°C   Bottom 3°C~14°C
Telemetry System	Record status, sales and inventory, Analyze merchandise and potentials inventory
LCD display size	160mm × 90mm (L * w)
Power	500W, AC 110V-220V, 50/60HZ
Product Certification/standard	CE,FCC

Excellent customer & consumer experience

Easy to be configured, convenient to use

- Prominent controller board and Keypad with LED light buttons, more smart & efficient

Bright showcase

- LED lighting system, arrestive, vivid and energy-saving

- Glass Heater embedded on glass to prevent condensing of moisture;

Vending with drop sensor

- Ensure vending success every time or refund the money

Paying in cash & cashless

- Comply with MDB payment system protocol

  Bank note,  Coin, Debit and Credit card,

  Smart card, NFC, QR code and Bar code, etc.

Variety of merchandise in large capacity

- Diversified packages

  Can, Bottle, Box, Bag, Bar, etc.

- Variety of spiral options and adjustable tray height go with merchandise

- Guide rail for cans to facilitate cans delivery

- Max 9 selections per tray

- Max 6 trays

- Max expandable to 54 selections

Config of Capacity and Selections

- Snack/Food - Bag/Box

  4 selections/tray

  (4 dual spirals)

- Beverage/Candy - Bottle/Can/Bar

  8 selections/tray

  (8 single spirals)

Note: Above Capacity and Selections in the diagrams are for reference only, please contact us for more details

Fresh, healthy & more selections

- Stratified temperature control

  Top 2 trays (A/B trays) range between 12°C~18°C

  Bottom 2 trays (C/D trays) range between 3°C~14°C

  Flexible to vend more selections of merchandise, increase your consumers

Maintain with ease

- Self-Diagnostics to inform in time, keep worriless vending

- Modularized Refrigeration System,easy to maintain, repair and replace

- Optimized merchandise trays, be drawn out at 45/90 degrees for easy loading and maintenance of spiral and driver

Robust & Smart body

- Tempered double-pane glass full of argon gas for accident and thermal insulation

- Pickup box with separator to merchandise case

- Rigid steel body with overall foam, further efficient to keep temperature

- Customize painting or sticker of body, attractive looks that is loved by consumers

Environmentally friendly

- Refrigerator with R-134a instead of CFC

- Low air noise

- Computer-monitored temperature regulation system per surroundings temperature, energy-saving

Telemetry system

- 24/7 wireless monitoring vending machines at office or home with ease

- Record status, sales and inventory

- Analyze merchandise and potentials

- Keep never run out of stock and prevail!

FAQs

Q1: What is the life time of KIMMA vending machines?

A: 10 years at least, and you can expect more than 20 years.

Q2: What is the life time of cash payment system (Coin changer & Bill acceptor)?

A: We adopt ITL bill acceptors by default, which are made in UK and with the service life up to 5 years by average. For coin changer, we use KIMMA (KCM-D) by default, which is developed and made by ourselves and proved the number of use is up to 80000 times.

Q3: What is warranty and after sales services?

A: One year warranty. Any question, we will directly answer you. If technical problem, our after-sales service professional will reply within 12 hours, lifelong and free technical support.

Q4: What is the brand and life time of the compressor used in KIMMA vending machines of refrigeration series?

A: We use Donper compressor by default, which is the largest and best manufacturer of compressors in China. The performance and efficiency is high, the life time is 8 years by average, energy-saving and environmentally friendly.Of course,you could choose your favorite brand compressor.

Q5: Are the machines difficult to maintain?

A: It's not difficult at all, and you even don't need a technician. Our machines have the intelligent self-diagnosing and self-correcting functions, so you will easily locate and fix the problem when there is a trouble on.

For example, when a tray motor gets jammed, an error prompt will be shown on display screen, then you just need to access machine settings and try to get the motor rotate for a circle by running "motor testing", and if the motor is not broken inside, it will be automatically got back to its initial position and sort the jam out.

Q7: Where is your factory?

A: We are located in Changsha city, Hunan Province, warmly welcome to visit us.
